Autel MaxiSYS MS919 Upgraded MS909/ MS908S PRO/ Maxisys Elite -Same as Autel MaxiSys Ultra / MS919 EV
Autel MaxiSys MS919 2022 Intelligent Automotive Diagnostic Tool, OE-TSB, Repair Assist, Advanced 5-in-1 VCMI, Built-in Oscilloscope & Multimeter, ECU Coding & Programming, Topology Mapping (US Ver.) Upgraded MS909/ MS908S PRO+ MV150/MV108/MV480
MS919EV = MS919 + EV Diagnostics Upgrade Kit
Burst Point of Autel Maxisys MS919:
- 2022 NEWEST, English & Spanish Default: Autel MaxiSys MS919 is Autel’s 2022 latest intelligent diagnostic scan tool defaulted English & Spanish for using in North & South American (North & South American ONLY). MS919 is backed by 30-day of NEW REPLACEMENT or FULL REFUND and 12 month free updates, and you will be receiving life-time technical support from Autel technical support team. Send VIN to email@example.com to check compatibility before order is always appreciated.
- INTELLIGENT DIAGNOSTICS: What's the biggest update of MS919? Compared with MS908S Pro/MS Elite/ MK909, Autel MaxiSys MS919 is empowered by Intelligent Diagnostics, it tells you how to fix the malfunctions. With built-in OE TSB, Repair Assist, DTC analysis features, and preset repair guidance and case, you can complete the diagnostic and repair quickly and easily. Intelligent Diagnostics are not universally compatible to all the cars, please send VIN to firstname.lastname@example.org to check.
- INTUTIVE SYSTEM TOPOLOGY: System Topology Mapping of CAN BUS tree with color coded module can present full system diagnostic results. The module status and ECU connection is showed in tree clear and cut. Topology is not universal, it currently supports: BMW, Volkswagen, Audi, GM, Ford, Chrysler, Nissan, Honda/Acura, Toyota/Lexus, Jaguar/Land Rover, BENZ, Hyundai, Kia, Volvo, PSA. If your vehicles are covered above, you’d better contact us via email@example.com for double check.
- POWERFUL VCMI INTERFACE: MaxiFlash VCMI connector is integrated with 5 power functions: Oscilloscope, Waveform Generator, Multimeter, Can BUS tester and VCI. Not just an interface, but a powerful tool to facilitate fast and complete diagnostic work with faster transmission speed, more stable and better anti-interference ability, you can presume your work at the range of 164 feet / 50m wirelessly, yet with diagnosis speed increased by over 30%.
- TOP HARDWARE CONFIGURATION: The MaxiSys MS919 features a 10-inch touchscreen with Android 7.0 OS powered by Octa-core processor (2.3GHz Quad + 1.7GHz Quad), 128G built-in memory to provide diagnostic and repair guidance and also to meet the busy repair demands, 15000mAh battery enables 8h of continuous work. And dual Wi-Fi connection to the VCMI device and a wireless network simultaneously for faster diagnostics and greatest convenience. The most competitive intelligent scanner is here!
|HARDWARE||Autel MSEILTE||Autel MS909||Autel MS919||Autel MSULTRA|
|VEHICLE CONNECTION||MaxiFlash Elite & MaxiSYS VC-100||MaxiFlash VCI INCLUDING LATEST PROTOCOLS||MaxiFlash VCMI INCLUDING LATEST PROTOCOLS|
|COLOR SCREEN||9.7-INCH TOUCHSCREEN 2048X1536DP1/LED COLOR SCREEN||9.7-INCH TOUCHSCREEN 1536×2048DPI/TFT-LCD ASAHI GLASS||12.9-INCH TOUCHSCREEN 2732×2048DPI/TFT-LCD ASAHI GLASS|
|PROCESSOR||1.8GHz QUAD-CORE||2.3GHz+1.7GHz OCTA-CORE|
|MEMORY/RAM||64GB SSD/2GB RAM||128GB SSD/4GB RAM||256GB SSD/4GB RAM|
|BATTERY||13,600mAh||15,000 mAh,8 HOURS CONTINUOUS OPERATION||18,000 mAh,8 HOURS CONTINUOUS OPERATION|
|CAMERA||8MP||16MP REAR/5MP FRONT|
|OPERATING SYSTEM||ANDROID 4.4.4||ANDROID 7.0|
|SOFTWARE UPDATES||2Years FREE||1Year FREE|
|SPLIT SCREEN DISPLAY||VIEW MULTIPLE FUNCTIONS AT ONCE|
|ADVANCED VCMI 5-IN-1DEVICE||VCI,OSCILLOSCOPE,MULTIMETER, WAVEFORM GENERATOR,CAN BUS CHECK|
|REPAIR ASSIST||GUIDED PROCEDURES WITH DTC ANALYSIS & FAULT CODE SOLUTIONS|
|TOPOLOGY MODULE MAPPING||COLOR CODED ALL SYSTEM STATUS SCREEN ON SUPPORTED VEHICLES|
|RELEVANT CASES||DTC TROUBLESHOOTING||DTC TROUBLESHOOTING REPAIR TIPS VIDEO LIBRARY|
|TECHNICAL SERVICE BULETINS||AVAILABLE ON SELECT VEHICLES|
|VEHICLE DIAGNOSTICS||PASSENGER/LIGHT DUTY SOME MEDIUM DUTY|
|BASIC & SPECIAL FUNCTIONS||US,ASIAN & EUROPEAN 1996 AND NEWER|
|OBDII TEST MODES||ALL 10 TEST MODES LIVE & FREEZE FRAME/ENHANCED MODE 6|
|SERVICE RESETS||17+SERVICE FEATURES||26 SERVICE FEATURES|
|DIESEL PM||RESET DIESEL EMISSIONS LIGHT & MEDIUM DUTY VEHICLES|
|SYSTEM DIAGNOSTICS||ACCESS ALL MODULES IN ALLL SYSTEMS|
|COMPONENT ACTIVATIONS||BI-DIRECTIONAL CONTROL|
|ENHANCED FUNCTIONS||ADVANCED CODING +ADAPTATIONS|
|24/7 Free Technical Support for You. Factory Direct Price. Any help firstname.lastname@example.org|

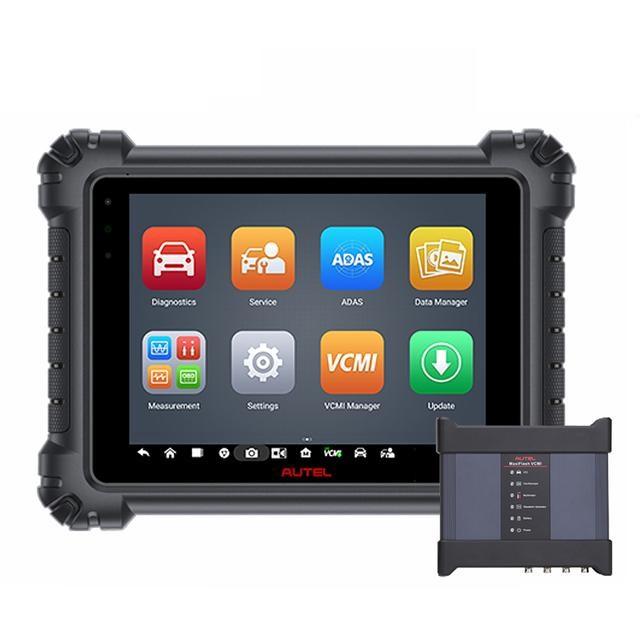

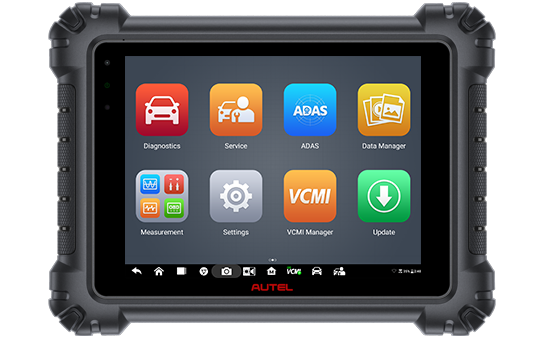

Autel MaxiSYS MS919
The MaxiSys MS919 features a 9.7-inch touchscreen tablet with Android 7.0 OS powered by an Octa-core processor (2.3GHz Quad + 1.7GHz Quad), substantial 128GB built-in memory to provide diagnostic guidance and test components to confirm repairs. The new MaxiFlash VCMI, functions as a 4-channel oscilloscope, waveform generator, multimeter, and CAN BUS tester. MS919 software provides a large library of preset guided tests and extensive waveform library, to ensure techs get the best use of Oscilloscope. The MS919 software outperforms competitors by offering DTC and sensor specific test options to help test more accurately, as well as providing probe and component location diagrams so technicians test while connected correctly. Top hardware configuration with smartest diagnostics features on the market, it is your best choice for winning more business and improving business competence on vehicle after-market!
Autel Maxisys MS919 Features:
- OE Technical service bulletin (TSB): Official statement to eliminate unnecessary inspection process
- Repair Assist:Prioritize DTCs, and step-by-step guide to fix fault
- DTC Analysis: Define DTC, causes and inspection methods and DTCs Rank by Priority
- Repair Guidance: Repair process in videos and photos for most intuitive instruction
- Component Measurement: In-depth inspection of component with oscilloscope and other measurement tools.
- NOTE: Intelligent Diagnostics supported makes: BMW, GM, JLR, Ford, Chrysler, FAC, Porsche, VW, Audi etc. Please be noted that Intelligent Diagnostics is not universal to all the above vehicle brand models, please send your VIN to us before your purchase.
Autel MS919 Diagnostic Tablet as the most advanced scanner of Autel, it can perform OE level all systems diagnostics on 95% of post 2000 vehicles, and 85% of post 2019 vehicles to read and clear codes, perform 30+ service functions, view live data, perform active tests and retrieve ECU information.
- Autel MS919 VCMI has incorporated J2534 Programmer which allows you program the new replacement ECU module to the existing software & firmware and for BMW & Benz vehicles to fix software-controlled drivability issues and emission issues. NOTE: Please send us VIN number of your BMW, Benz to check compatibility before purchase. Currently, Autel scan tools can only program ECUs for specific BMW and BENZ, NONE of the scanner can do ECU programming on other brand vehicles.
- Autel MS919 intelligent diagnostic tablet comes with bi-directional control capability, you can test various systems or parts by reading the engine ECU data, or by sending commands to actuators, such as solenoid tests, pump motor tests, relay, or switch to check the functionality. Note: Active Tests are NOT universally compatible. Please send us VIN to check compatibility first.

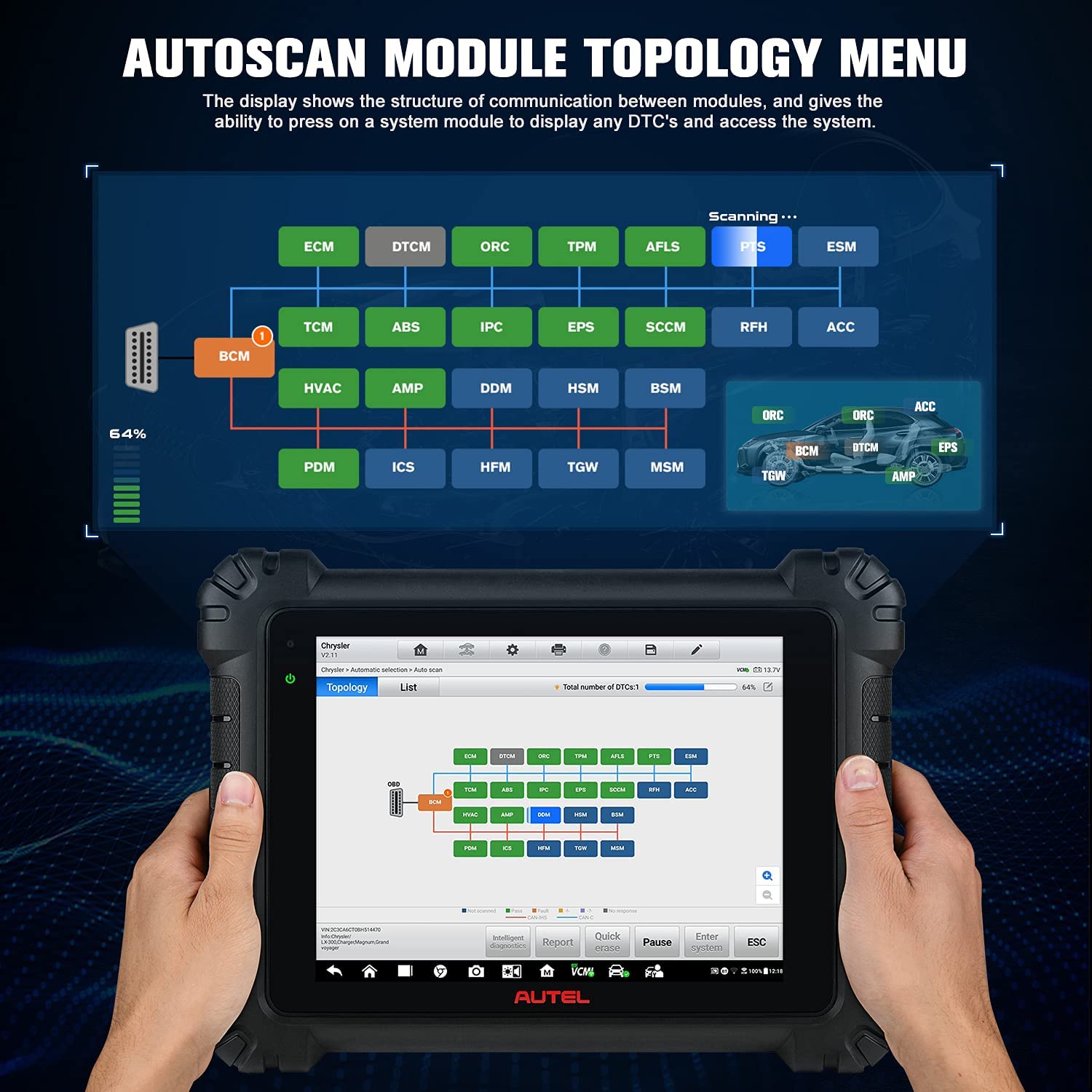

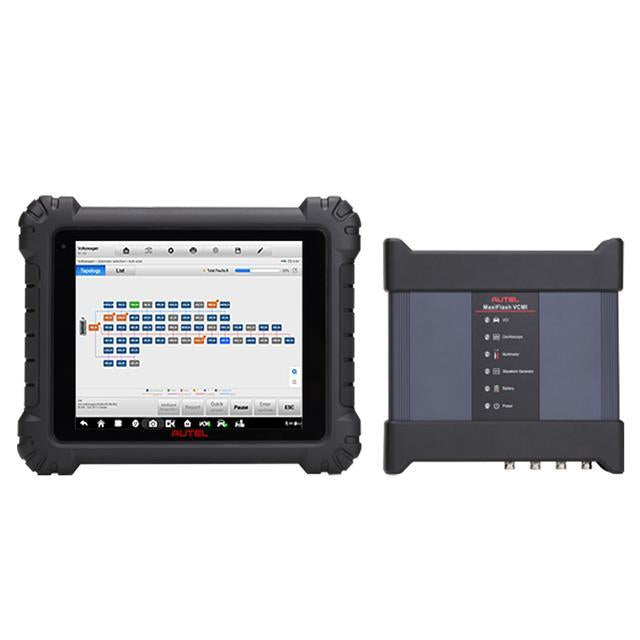

- System Topology Mapping of CAN BUS tree with color coded module can present full system diagnostic results. The module status and ECU connection is showed in tree clear and cut. Topology is not universal, it currently supports: BMW, Volkswagen, Audi, GM, Ford, Chrysler, Nissan, Honda/Acura, Toyota/Lexus, Jaguar/Land Rover, BENZ, Hyundai, Kia, Volvo, PSA. Send VIN for us to check before your purchase!
- MS919 MaxiFlash VCMI is more powerful than ever with 5 instruments (Oscilloscope, Waveform Generator, Multimeter, Can BUS tester and VCI) integrated! It can provide simultaneous and in-depth analysis on test components.
- Oscilloscope: 20MHz bandwidth, up to 80MS/s sampling rate, Easier operation with built-in preset guided test
- OBD2 CAN BUS check: Easy and fast Muti-function detection
- VCI: Fastest and stable wireless data communication up to 164 feet/50m, diagnostic speed increases by 30%

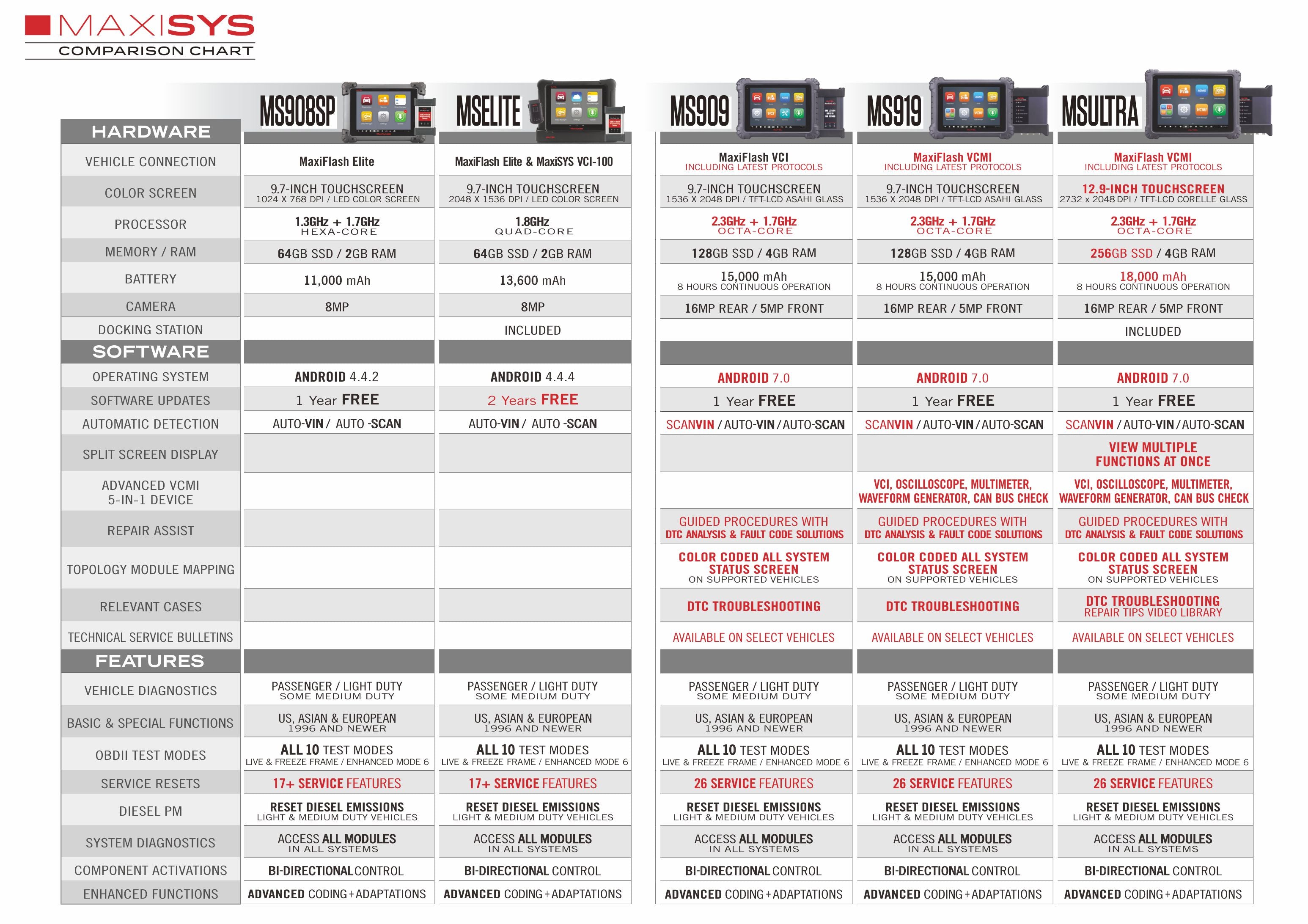

Comparison Among MS909, MS919 & Ultra
Autel Maxisys MS919 Specifications:
|Operating System:||Android 7.0|
|Processor:||Samsung Exynos8895V octa-core Processor
(2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
|Memory:||4GB RAM & 128GB On-board Memory|
|Display:||9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen|
|Connectivity:||• Wi-Fix2 (802.11 a/b/g/n/ac 2x2 MIMO) • BT v.2.1 + EDR • GPS • USB 2.0 (TWO USB HOST Type A, ONE USB mini device) • HDMI 2.0 • SD Card (Support up to 256GB)|
|Camera (rear):||Rear: 16 Megapixel, Autofocus with Flashlight
Front: 5.0 Megapixel
|Sensors;||Gravity Accelerometer, Ambient Light Sensor (ALS)|
|Audio Input/Output:||• Microphone • Single Speaker • 3-Band 3.5 mm stereo/standard headset jack|
|Power and Battery:||15000mAh 3.8V lithium-polymer battery
Charging via 12V AC/DC power supply with the temperature between 0°C and 45°C
|Input Voltage:||12V/3A Adapter|
|Operating Temp.:||0 to 50°C (32 to 122°F)|
|Storage Temp.:||-20 to 60°C (-4 to 140°F)|
|Dimensions:||304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")|
|Protocols:||DoIP, PLC J2497, ISO-15765, SAE-J1939, ISO-14229 UDS, SAE-J2411 Single Wire Can(GMLAN), ISO-11897-2, ISO-11897-3, SAE-J2819 (TP20),
TP16, ISO-9141, ISO-14230, SAE-J2610 (Chysler SCI), UART Echo Byte, SAE-J2809 (Honda Diag-H), SAE-J2740 (GM ALDL), SAE-J1567 (CCD BUS),
Ford UBP, Nissan DDL UART with Clock, BMW DS2, BMW DS1, SAE J2819 (VAG KW81), KW82, SAE J1708, SAE-J1850 PWM (Ford SCP), SAE-J1850 VPW (GM Class2)
